# trame-gofish

**Repository Path**: mirrors_Kitware/trame-gofish

## Basic Information

- **Project Name**: trame-gofish
- **Description**: Trame widget for GoFish charts
- **Primary Language**: Unknown
- **License**: MIT
- **Default Branch**: main
- **Homepage**: None
- **GVP Project**: No

## Statistics

- **Stars**: 0
- **Forks**: 0
- **Created**: 2025-11-16
- **Last Updated**: 2026-07-18

## Categories & Tags

**Categories**: Uncategorized

**Tags**: None

## README

# trame-gofish

Trame widget for GoFish chart library that can be found at
https://gofish.graphics/

If you want to quickly try it out, you can run the command line below (assuming
you have **uv**)

```
uv run https://raw.githubusercontent.com/Kitware/trame-gofish/refs/heads/main/examples/tuto-final.py
```

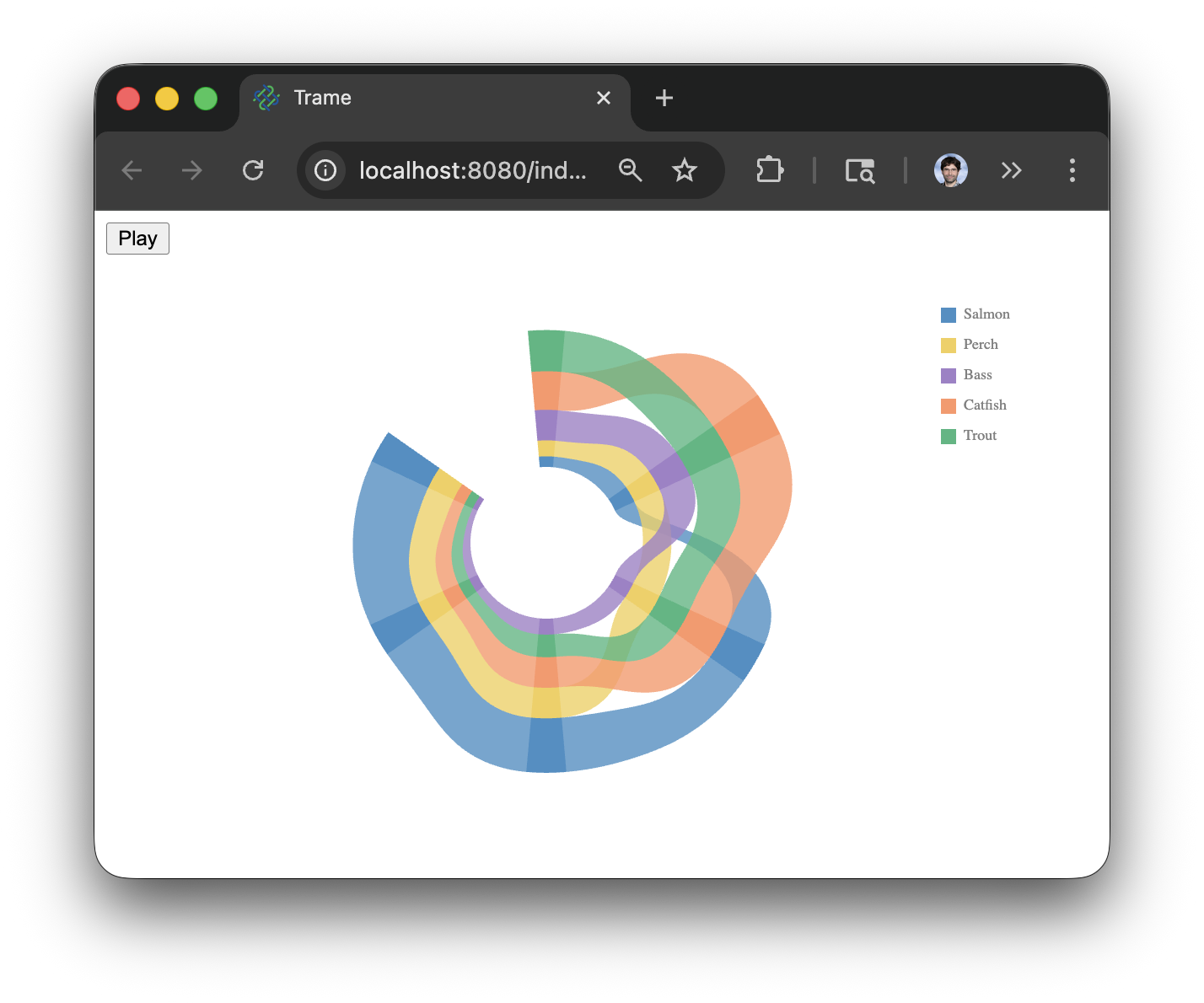

And you will get the picture below that you can animate!

![Demo](https://raw.githubusercontent.com/Kitware/trame-gofish/refs/heads/main/trame-gofish.png)

by setting up a widget with trame like

```py
gofish.GoFishGraph(
    data=("dataset", SEAFOOD),
    update="""
      ({ gf, data, el }) => (
            gf.layer(
                { coord: gf.clock() },
                [
                  gf.chart(data)
                    .flow(
                        gf.spread('lake', {
                            dir: 'x',
                            spacing: (2 * Math.PI) / 6,
                            mode: 'center',
                            y: 50,
                            label: false,
                        }),
                        gf.derive((d) => gf.orderBy(d, 'count')),
                        gf.stack('species', { dir: 'y', label: false })
                    )
                    .mark(gf.rect({ h: 'count', fill: 'species' }))
                    .as('bars'),
                  gf.chart(gf.select('bars'))
                    .flow(gf.group('species'))
                    .mark(gf.area({ opacity: 0.8 })),
                ]
            ).render(el, {
                w: 500,
                h: 300,
                transform: { x: 250, y: 150 },
                axes: true,
            })
      )
    """,
)
```

## License

This library is OpenSource and follow the MIT License

## Installation

Install the application/library

```sh
pip install trame-gofish
```

## Development setup

We recommend using uv for setting up and managing a virtual environment for your
development.

```sh
# Create venv and install all dependencies
uv sync --all-extras --dev

# Activate environment
source .venv/bin/activate

# Install commit analysis
pre-commit install
pre-commit install --hook-type commit-msg

# Allow live code edit
uv pip install -e .
```

Build and install the Vue components

```sh
cd vue-components
npm i
npm run build
cd -
```

For running tests and checks, you can run `nox`.

```sh
# run all
nox

# lint
nox -s lint

# tests
nox -s tests
```
